Salinity Meters

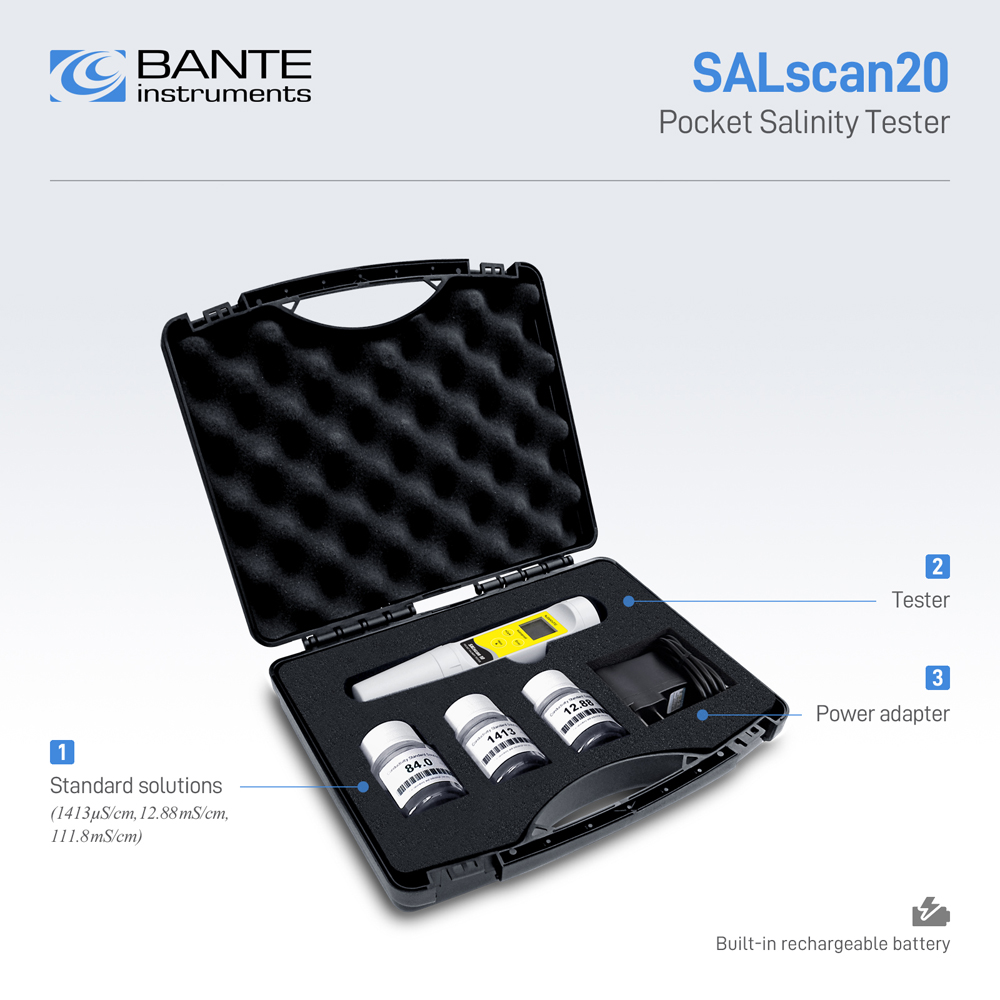

SALscan20 Pocket Salinity Tester
High-range pocket salinity tester, containing 5 setting options, 1 to 3 points calibration, suitable for measuring seawater and high salinity liquids, measurement range: 0 to 80 ppt.
Features:
? High-range pocket salinity tester contains conductivity measurement mode.
? Platinum-black coated sensor provides quick and reliable measurement results.
? 1 to 3 points calibration with automatic recognition for conductivity standards.
? Automatic temperature compensation ensures accurate readings over the entire range.
? Auto-read function senses and locks the measurement endpoint.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the number of calibration points, temperature unit, etc.
? Reset function automatically restores all settings to the factory defaults.
? Replaceable electrode module reduces maintenance and replacement cost.
? Waterproof feature to ensure complete protection in harsh environments.
Model | SALscan20 | |
Salinity | ||
Range | 0.00 to 80.00 ppt | |
Resolution | 0.01 ppt | |
Accuracy | ±1% F.S. | |
Conductivity | ||
Range | 100.0 to 2000 μS/cm, 20.00, 200.0 mS/cm | |
Resolution | 0.01, 0.1, 1, automatic | |
Accuracy | ±1% F.S. | |
Calibration | 1 to 3 points | |
Calibration Solutions | 1413 μS / 12.88 mS / 111.8 mS | |
Temperature | ||
Range | 0 to 60°C / 32 to 140°F | |
Resolution | 0.1°C/°F | |
Accuracy | ±1°C / ±1.8°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 60°C / 32 to 140°F, automatic | |
Temperature Coefficient | 2%/°C | |
Reference Temperature | 25°C | |
Cell Constant | K=10 | |
Hold Function | Manual / Auto-read measurement endpoint | |
Auto-Power Off | 8 minutes after last key pressed | |
Display | Dual-line LCD (21 × 21 mm) | |
Power Supply | 2 × 1.5V AAA batteries | |
Battery Life | Approximately 200 hours of continuous use | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 185 × 40(?) mm | |
Weight | 100 g |
Ordering Code | Tester Includes |
SALscan20 | Conductivity standard solutions 1413 μS/cm, 12.88 mS/cm, 111.8 mS/cm |
Carrying case |
| Items | Description |
| E-ECSCAN-C10-10K Electrode | Replacement conductivity electrode |
| Conductivity Standard Solution | For conductivity calibration |
Ordering Code | Dimensions and Weights |
SALscan20 | 28 × 8 × 25 cm, 1.5 kg |
