Conductivity Meters

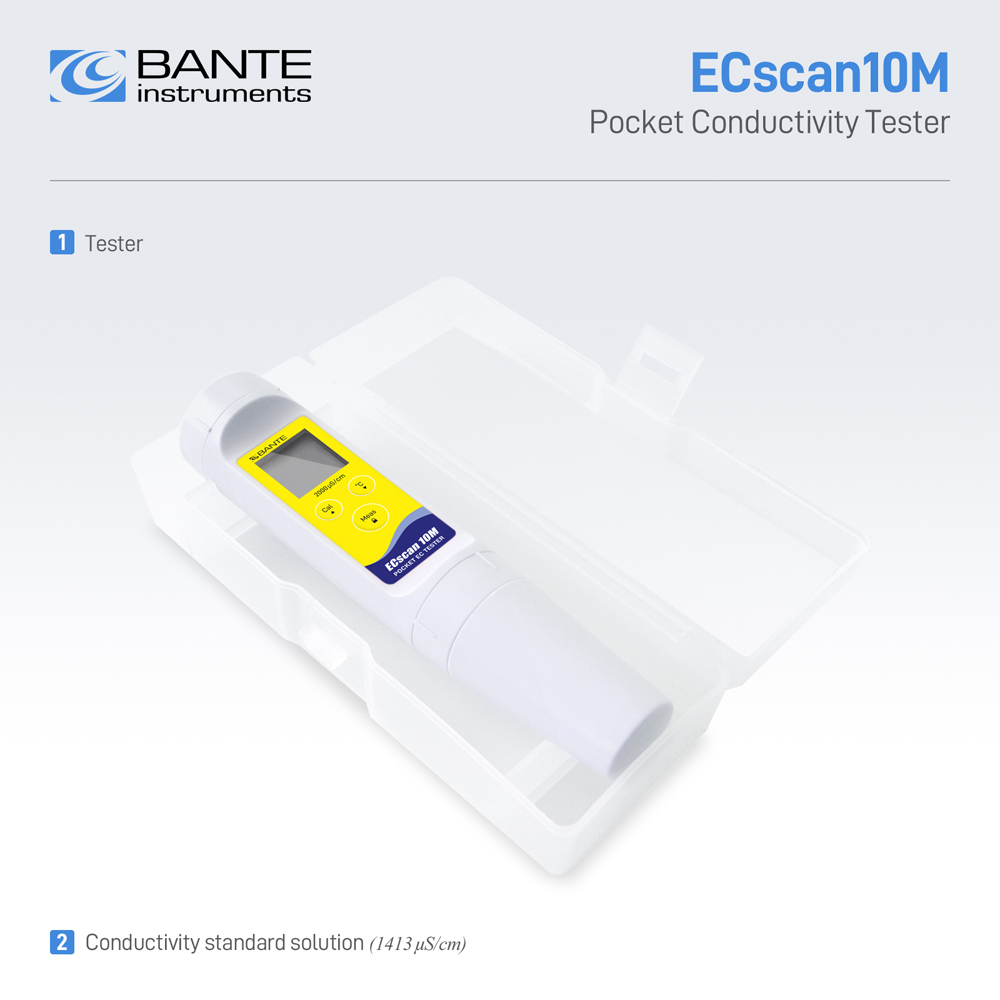

ECscan10M Pocket Conductivity Tester
Single-range pocket conductivity tester for measuring general water samples, measurement range: 10 to 1999 μS/cm.
Features:
? Mid-range conductivity tester is easy to use.
? 1 point calibration allows the use of a custom standard solution (1000 to 1700 μS/cm).
? Automatic temperature compensation corrects the conductivity readings to 25°C.
? Hold function momentarily freezes reading for easy viewing and recording.
? Auto-power off effectively conserves battery life.
? Replaceable electrode module reduces maintenance and replacement cost.
? Waterproof design ensures complete protection in harsh environments.
Applications:
? Natural water and aquariums
? Beverage and other industrial applications
Model | ECscan10M | |
Conductivity | ||
Range | 10 to 1999 μS/cm | |
Resolution | 1 μS/cm | |
Accuracy | ±1% F.S. | |
Calibration | 1 point | |
Calibration Solution | 1413 μS/cm | |
Temperature | ||
Range | 0 to 50°C | |
Resolution | 1°C | |
Accuracy | ±1°C | |
Other Specifications | ||
Temperature Compensation | 0 to 50°C / 32 to 122°F, automatic | |
Temperature Coefficient | 2%/°C | |
Reference Temperature | 25°C | |
Cell Constant | K=1 | |
Hold Function | Manual | |
Auto-Power Off | 8 minutes after last key pressed | |
Display | Single-line LCD (21 × 21 mm) | |
Power Supply | 3 × 1.5V LR44 micro alkaline batteries | |
Battery Life | Approximately 150 hours of continuous use | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 185 × 40(?) mm | |
Weight | 100 g |
Ordering Code | Tester Includes |
ECscan10M | Conductivity standard solution 1413 μS/cm |
Plastic box |
| Items | Description |
| E-ECSCAN-C1-100K Electrode | Replacement conductivity electrode |
| Conductivity Standard Solution | For conductivity calibration |
Ordering Code | Dimensions and Weights |
ECscan10M | 20 × 11 × 7 cm, 0.5 kg |
